Basic usage¶

!uv pip install nanodrr

nanodrr features many of the same capabilities as DiffDRR, but with improved performance and interfaces including

A new Subject class
A functional DRR rendering interface
A new internal camera geometry based on pinhole cameras
The ability to freely exchange subjects, intrinsics, and extrinsics at runtime

import matplotlib.pyplot as plt
import torch

from nanodrr.camera import make_k_inv, make_rt_inv
from nanodrr.data import Subject, download_deepfluoro
from nanodrr.plot import plot_drr

device = torch.device("cuda" if torch.cuda.is_available() else "cpu")

Another fun change is that, with pytorch>=2.10, rendering (without a labelmap) works on MPS!

Subject¶

nanodrr also uses a Subject to hold a volume, (optional) labelmap, and coordinate frame transforms. However, now volumes are not centered at the origin by default.

# Load the volume and (optional) segmentation
imagepath, labelpath = download_deepfluoro(subject_id=1)
subject = Subject.from_filepath(imagepath, labelpath).to(device)

Additionally, all coordinate transforms needed for rendering (world → voxel → grid sample) are fused, which dramatically speeds up rendering.

Functional interface¶

nanodrr provides a functional interface for DRR rendering (nanodrr.drr.render).

The inputs are:

A Subject object
An (batched) inverse intrinsic matrix
An (batched) inverse extrinsic matrix

Intrinsic and extrinsic matrices come from the pinhole camera model. Utilities are provided to construct these matrices from standard C-arm imaging parameters.

from nanodrr.drr import render

# Construct the inverse intrinsic matrix from C-arm imaging parameters
sdd = 1020.0
delx = dely = 2.0
x0 = y0 = 0.0
height = width = 200

k_inv = make_k_inv(sdd, delx, dely, x0, y0, height, width, device=device)
sdd = torch.tensor([sdd], device=device)

Although subject's are no longer centered at the origin in world coordinates, we can achieve the same camera parameterization as DiffDRR by constructing the C-arm pose relative to the subject's isocenter.

# Construct the inverse extrinsic matrix
rt_inv = make_rt_inv(
    torch.tensor(
        [
            [0.0, 0.0, 0.0],
            [30.0, 0.0, 0.0],
        ],
        device=device,
    ),
    torch.tensor(
        [
            [0.0, 850.0, 0.0],
            [0.0, 850.0, 0.0],
        ],
        device=device,
    ),
    orientation="AP",
    isocenter=subject.isocenter,  # Move to the subject's isocenter
)

In DiffDRR, we were constrined to rendering X-rays from a single subject with fixed intrinsics. With the functional interface in nanodrr, we can freely exchange the subject and intrinsics, as well as the C-arm pose.

Also, note that the intrinsic matrix can be different for every image being rendered, which is useful for biplane C-arm setups.

# Render the DRR
img = render(subject, k_inv, rt_inv, sdd, height, width)
print(img.shape)

torch.Size([2, 8, 200, 200])

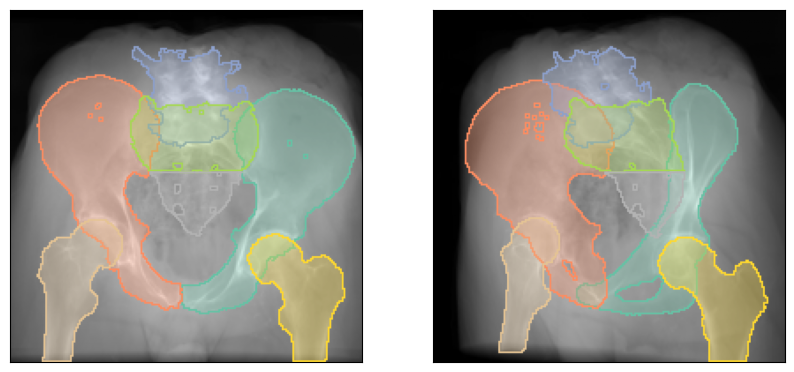

As in DiffDRR, if our Subject has a labelmap, the rendered DRRs are multichannel with each channel corresponding to a distinct anatomical structure.

# Plot the DRR and overlay the projected segmentation labels
plot_drr(img, ticks=False)
plt.show()

png

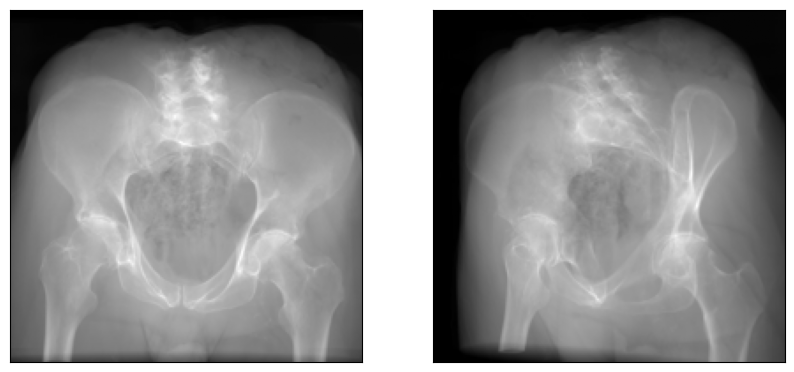

# Sum the intensities across all channels and plot the DRR
plot_drr(img.sum(dim=1, keepdim=True), ticks=False)
plt.show()

png

Class interface¶

The traditional class interface from DiffDRR is also available if you wish to have fixed intrinsics. However, note that the new class interface also let's you freely change the user at runtime.

from nanodrr.drr import DRR

# Initialize the DRR module from the intrinsics
sdd = 1020.0
drr = DRR.from_carm_intrinsics(
    sdd,
    delx,
    dely,
    x0,
    y0,
    height,
    width,
    device=device,
)

# Render with fixed intrinsics
img = drr(subject, rt_inv)
plot_drr(img, ticks=False)
plt.show()

png

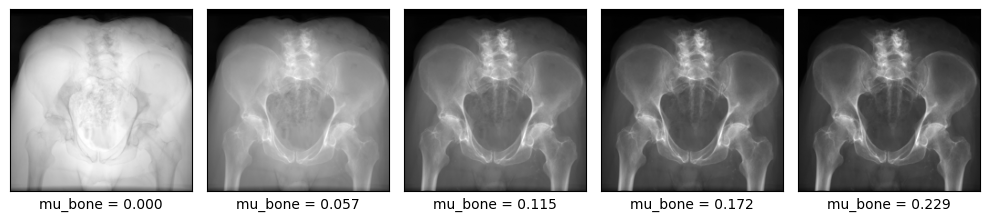

Contrast variation¶

Physically-accurate rendering requires the voxelgrid to be in units of linear attenuation coefficients (LACs). Conversion from CT's Hounsfield Units (HUs) to LACs is handled by nanodrr.data.preprocess.hu_to_mu.

When a subject is initialized, this conversion is performed and the resulting LAC tensor is cached. If you change any of these values on the fly (e.g., subject.mu_bone = 1.0), the LAC tensor is recomputed. This let's you vary the contrast of the rendered X-rays, which is a useful data augmentation.

from nanodrr.data.preprocess import MU_BONE

subject = Subject.from_filepath(imagepath, mu_bone=MU_BONE).to(device)
rt_inv = make_rt_inv(
    torch.tensor([[0.0, 0.0, 0.0]], device=device),
    torch.tensor([[0.0, 850.0, 0.0]], device=device),
    orientation="AP",
    isocenter=subject.isocenter,
)

imgs = []
bmus = []
for multiplier in range(0, 5):
    subject.mu_bone = multiplier * MU_BONE
    img = drr(subject, rt_inv)
    imgs.append(img)
    bmus.append(subject.mu_bone)

plot_drr(torch.cat(imgs), ticks=False, title=[f"mu_bone = {bmu:.3f}" for bmu in bmus])
plt.tight_layout()
plt.show()

png
